What Is a Subpanel? Subpanel Vs. Main Panel
A subpanel, or satellite circuit breaker panel, is a smaller service panel that distributes power to specific areas of your home or building, such as garages, workshops, or home additions. It draws power from the main panel via a feeder cable to reduce the load on the main panel and enhance system safety and manageability.
Unlike the main panel, which is directly linked to the utility company and distributes power to the entire building, a subpanel operates off the main panel’s power and manages a portion of the electrical load.
If you’re interested in how subpanels are connected and their full benefits, there’s more to explore.
You can also call (704) 804-3320 if you have any questions or need immediate electrical assistance in Charlotte, NC.
Functions of a Subpanel
An electrical subpanel is a smaller service panel that distributes power to specific areas of a property, such as garages, workshops, or home additions. It connects to the primary service panel via a double-pole 240-volt breaker and contains its own circuit breakers for various branch circuits. While it doesn’t increase the home’s total electrical capacity, a subpanel offers several advantages:
- Convenience: Installing a subpanel in a specific area allows for easier management of appliances, outlets, or lighting circuits without accessing the main service panel. This setup is handy for resetting breakers serving power tools or heavy machinery.
- Capacity Expansion: A subpanel provides additional circuit slots if the main panel is full. For instance, connecting a 60-amp breaker to a subpanel distributes that amperage among multiple circuits, reducing the risk of overloads and enhancing safety.
- Cost and Time Efficiency: During construction or renovation, installing a subpanel minimizes the need for multiple long runs of wire back to the primary service panel. Running a single high-amperage circuit to the subpanel is more cost-effective than numerous separate circuits, saving materials and labor.
Difference Between Main and Subpanel
When managing a property’s electrical system, it’s important to understand the distinctions between the main panel and a subpanel.
Direct Power Source and Connection
- Main Panels: These are directly linked to the house’s entrance point, receiving power from the utility company. They connect to the service entrance and distribute power to the entire building.
- Sub-panels operate off the power provided by the main panel and do not independently supply energy. They are connected to the main panel via a feeder cable.
Key Differences
Subpanels help manage and distribute power efficiently, reducing the load on the main panel and allowing for the addition of more circuits without overloading. They also enhance convenience by providing easier access to circuit breakers in different areas of the home or property.

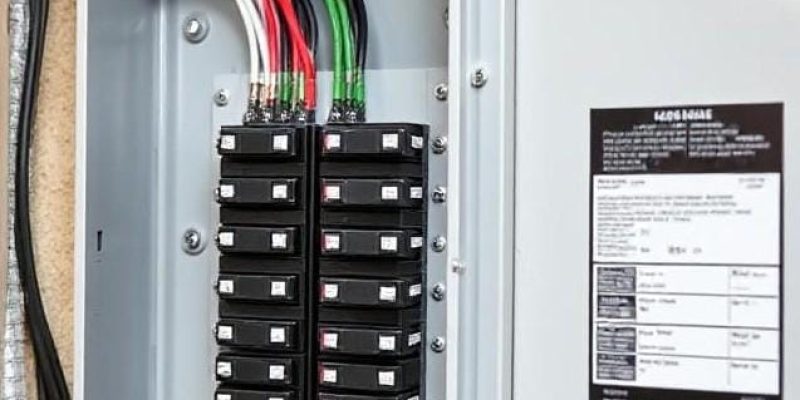

Connectivity and Operation of a Subpanel
We need to examine a subpanel’s connectivity to the main panel to understand its operation. The subpanel is fed by a double-pole 240-volt breaker at the main service panel, which supplies two hot wires (feeder wires), a neutral wire, and a ground wire through a “three-wire cable with the ground.”
Here are the key points about the connectivity and operation of a sub-panel:
- Power Distribution: The feeder wires provide all the power to the subpanel, which is divided into additional branch circuits. Individual circuit breakers connected to hot bus bars distribute power to specific branch circuits, including light, outlet, and appliance circuits.
- Wiring Requirements: The thickness of the feeder wires depends on the subpanel’s desired amperage capacity. Proper neutral and grounding connections are vital for safety and must comply with electrical codes.
- Operational Safety: The subpanel has circuit breakers to halt excessive current flow and prevent overloads, protecting appliances from harm caused by power surges.
- Independent Control: The sub-panel’s principal breaker shutoff allows for independent control and enhances the electrical system’s organization and management.
Frequently Asked Questions
You need a permit to install a subpanel and guarantee compliance with electrical codes. The permit process varies by jurisdiction.
To determine the right size for a subpanel, calculate the total electrical load required for the area it will serve, considering the number and type of appliances and devices. Then, ensure that the subpanel’s amp rating matches this load and does not exceed the main panel’s capacity. Finally, choose a subpanel with the correct number of breaker slots and ensure it is compatible with the main panel and feeder circuit, checking local electrical codes for specific requirements.
You can install a subpanel outdoors, but it must be in a readily accessible location, use a NEMA-rated cabinet, and comply with NEC standards for wet locations to ensure proper weather protection and electrical insulation.
NM-B wire is available only with a copper conductor for wiring a subpanel for wiring a subpanel. Avoid using MHF mobile home feeder and URD cables. If you opt for aluminum, choose aluminum SE, THHN, or XHHW, as MHF and URD are unsuitable.
You should inspect your subpanels for residential properties every 5 to 10 years. Additional inspections are needed after repairs, power outages, renovations, and to follow the manufacturer’s guidelines. Newer homes may require inspections every 10 years.
